M Series / EMMA

Moving Probe Tester

Core Model in EMMA Lineup
Corresponds to various test floor needs

M Series (4 Probe System)

Standard Model
E4M6151G NEW
Standard Model in EMMA Series with test speed of 6,500 Points/Min. Corresponds to testing various types of boards, from large size to high density and FPC boards.

Large Size Model
E4M8161G NEW
Model best suitable for testing larger size boards (burn-in and backplane boards). Despite its greater size, high speed testing is still secured with higher alignment accuracy.

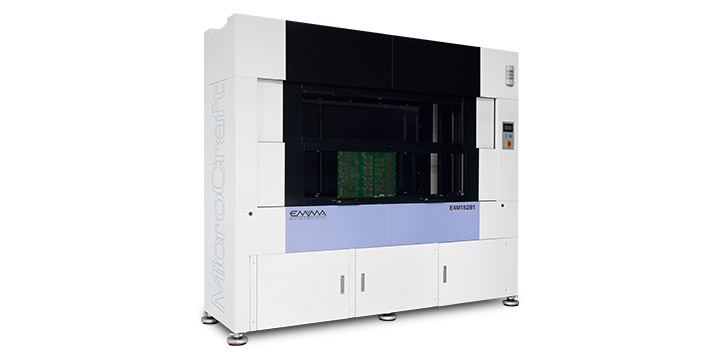

Extra Large Size Model
E4M15281G NEW
Developed to test larger size boards (burn-in, backplane, and back boards). One of the significant advantages comes from implementing Dual-Servo Drive for movement along horizontal axis. This has achieved conducting high speed testing in this extra-large size without limitation.

Detailed Specification

	E4M6151G	E4M8161G	E4M15281G
Max. Test Area	24 x 20” (610 x 510 mm)	32 x 24” (810 x 610 mm) *1	59.8 x 31.8” (1520 x 810 mm)
Number of Probes	2 Front, 2 Rear	2 Front, 2 Rear	2 Front, 2 Rear
Min. Board Size	2.4 x 2.6” (60 x 65 mm)	2.4 x 2.6” (60 x 65 mm)	2.4 x 2.6” (60 x 65 mm)
Max. Board Thickness	0.354” (9 mm)	0.354” (9 mm)	0.59” (15 mm)
Untestable Area	1 mm from edge of clamp area *2	1 mm from edge of clamp area *2	1 mm from edge of clamp area *2
Repeatable Accuracy *3	±0.16 mil (±4 µm)	±0.16 mil (±4 µm)	±0.16 mil (±4 µm)
Resolution	0.08 mil (2 µm)	0.08 mil (2 µm)	0.24 mil (6 µm)
Min. Pad Pitch	4.0 mil (100 µm) *4	4.8 mil (120 µm) *4	7.0 mil (180 µm) *4
Min. Pad Size	1.2 mil (30 µm) *5	1.2 mil (30 µm) *5	3.2 mil (80 µm) *5
Test Voltage	Continuity Test: 0–10 V Isolation Test: 250 V *6	Continuity Test: 0–10 V Isolation Test: 250 V *6	Continuity Test: 0–10 V Isolation Test: 250 V *6
Test Current	Continuity Test: 2.5 µA–150 mA	Continuity Test: 2.5 µA–150 mA	Continuity Test: 2.5 µA–150 mA
Clamp System	Pneumatic Clamp *7	Pneumatic Clamp *7	Pneumatic Clamp
Alignment Camera	2 Front, 2 Rear	2 Front, 2 Rear	2 Front, 2 Rear
Printer	External	External	External
Air Supply: Pressure	0.5 MPa	0.5 MPa	0.5 MPa
Air Supply: Volumetric flow rate	0.12 ft³/min. (3.5 ℓ/min.)	0.12 ft³/min. (3.5 ℓ/min.)	0.24 ft³/min. (7.0 ℓ/min.)
Power Supply *8 Single Phase AC200–240 V 50/60 Hz	10 A	15 A	20 A
Weight	2425lbs. (1100 kg)	3131lbs. (1420 kg)	4078lbs. (1850 kg)
Dimensions [ unit: inch(mm) ]
Required System	1）Control PC & Monitor 2）PC & Monitor for Test Data Editing. * 1) and 2) can be completed in one PC. * Please inquire our sales for PC specification.
Software	EMMA2020 for Control PC is included, but all other software is optional (supporting OS are Windows 10 / Windows 11)
Probe Type	Different types of probes were designed to address specific needs. Please contact our sales for more information on each probe types in selecting ideal probe.
Operating Conditions	70–75°F (21–24°C), 30–70% relative humidity * Do not use under the environment that has heavy condensing, dust, vibration, and/or corrosive gas. Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below) Oil Mist Concentration: 1 mg/㎥ (ANR) or below

*1 Area will be 770 x 610 mm when using side clamp (optional). *2 With needle probe. Figure will be differ with other probes. *3 This is based on laser measurement. *4 With T96MC-PB-0R40 probe *5 With T96MC-PB-0B00 probe *6 500 V / 1000 V Option *7 Side clamp is option. *8 There may be cases where inrush current equivalent 10 times of the regular current flow when the power is initially turned ON. Please choose the breaker that will not cause any malfunction under such inrush current.

M Series (8 Probe System)

Standard Model
E8M6151G NEW
Four probes mounted on the each side of the tester moves freely to record exponentially high test speed. Over 10,000 Test-Points/min. was accomplished by the combination of increasing probe efficiency and polished software control. While maintaining the fastest test speed, resolution of 2μm and repeatable accuracy of ±4 μm is capable.

Large Size Model
E8M8161G NEW
Large Size Model with the max. test area of 32 x 24” (810 x 610 mm). While maintaining the super fast test speed, lare sized boards can be tested.

Detailed Specification

	E8M6151G	E8M8161G
Max. Test Area	24 x 20” (610 x 510 mm)	32 x 24” (810 x 610 mm)
Number of Probes	4 Front, 4 Rear	4 Front, 4 Rear
Min. Board Size	2.4 x 3” (60 x 75 mm)	2.4 x 3” (60 x 75 mm)
Max. Board Thickness	0.354” (9 mm)	0.354” (9 mm)
Untestable Area	3 mm from edge of clamp area *1	3 mm from edge of clamp area *1
Repeatable Accuracy *2	±0.16 mil (±4 µm)	±0.16 mil (±4 µm)
Resolution	0.08 mil (2 µm)	0.08 mil (2 µm)
Min. Pad Pitch	4.0 mil (100 µm) *3	4.8 mil (120 µm) *3
Min. Pad Size	2.0 mil (50 µm) *4	2.0 mil (50 µm) *4
Test Voltage	Continuity Test: 0–10 V Isolation Test: 250 V *5	Continuity Test: 0–10 V Isolation Test: 250 V *5
Test Current	Continuity Test: 2.5 µA–150 mA	Continuity Test: 2.5 µA–150 mA
Clamp System	Pneumatic Clamp	Pneumatic Clamp
Alignment Camera	4 Front, 4 Rear	4 Front, 4 Rear
Printer	External	External
Air Supply: Pressure	0.5 MPa	0.5 MPa
Air Supply: Volumetric flow rate	0.12 ft³/min. (3.5 ℓ/min.)	0.12 ft³/min. (3.5 ℓ/min.)
Power Supply *6 Single Phase AC200–240 V 50/60 Hz	20 A	20 A
Weight	4409 lbs. (2000 kg)	4850 lbs. (2200 kg)
Dimensions [ unit: inch(mm) ]
Required System	1）Control PC & Monitor 2）PC & Monitor for Test Data Editing. * 1) and 2) can be completed in one PC. * Please inquire our sales for PC specification.
Software	EMMA2020 for Control PC is included, but all other software is optional (supporting OS are Windows 10 / Windows 11)
Probe Type	Different types of probes were designed to address specific needs. Please contact our sales for more information on each probe types in selecting ideal probe.
Operating Conditions	70–75°F (21–24°C), 30–70% relative humidity * Do not use under the environment that has heavy condensing, dust, vibration, and/or corrosive gas. Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below) Oil Mist Concentration: 1 mg/㎥ (ANR) or below

*1 With needle probe. Figure will be differ with other probes. *2 This is based on laser measurement. *3 With TIPRB-PB-N110, TIPRB-PB-N111 probe *4 With TIPRB-PB-B210, TIPRB-PB-B211 probe *5 500 V / 1000 V Option *6 There may be cases where inrush current equivalent 10 times of the regular current flow when the power is initially turned ON. Please choose the breaker that will not cause any malfunction under such inrush current.

M Series (2 Probe System)

Shuttle Table Model
F2M9172G-SH NEW
Larger Size Model connected to the shuttle table achieved dramatic increase in throughput production. SH stands for single shuttle (shuttle x 1).
* Door design may defer depending on the specification.

Shuttle Table Model
F2M9172G-SH2 NEW
SH2 stands for dual shuttle (shuttle x 2).
* Door design may defer depending on the specification.

Shuttle B sets up the next board while waiting the test on Shuttle A to complete Test (Shuttle A)

Shuttle A returns to original position after test is complete. Meanwhile Shuttle B starts the test and Shuttle A sets up the next board.

Detailed Specification

	F2M9172G-SH	F2M9172G-SH2
Max. Test Area	35.8 x 28.3” (910 x 720 mm)	35.8 x 28.3” (910 x 720 mm)
Number of Probes	2 Upper	2 Upper
Min. Board Size	2 x 2” (50 x 50 mm)	2 x 2” (50 x 50 mm)
Max. Board Thickness	0.4” (10 mm)	0.4” (10 mm)
Untestable Area	—	—
Repeatable Accuracy *1	±0.16 mil (±4 µm)	±0.16 mil (±4 µm)
Resolution	0.08 mil (2 µm)	0.08 mil (2 µm)
Min. Pad Pitch	7.0 mil (180 µm) *2	7.0 mil (180 µm) *2
Min. Pad Size	2.4 mil (60 µm) *2	2.4 mil (60 µm) *2
Test Voltage	Continuity Test: 0–10 V Isolation Test: 250 V *3	Continuity Test: 0–10 V Isolation Test: 250 V *3
Test Current	Continuity Test: 2.5 µA–150 mA	Continuity Test: 2.5 µA–150 mA
Clamp System	Vacuum Plate	Vacuum Plate
Alignment Camera	2 Upper	2 Upper
Printer	External	External
Air Supply: Pressure	0.5 MPa	0.5 MPa
Air Supply: Volumetric flow rate	0.02 ft³/min. (0.6 ℓ/min.)	0.02 ft³/min. (0.6 ℓ/min.)
Power Supply *4 Single Phase AC200–240 V 50/60 Hz	15 A	15 A
Weight	3307 lbs. (1500 kg)	4409 lbs. (2000 kg)
Dimensions [ unit: inch(mm) ]
Required System	1）Control PC & Monitor 2）PC & Monitor for Test Data Editing. * 1) and 2) can be completed in one PC. * Please inquire our sales for PC specification.
Software	EMMA2020 for Control PC is included, but all other software is optional (supporting OS are Windows 10 / Windows 11)
Probe Type	Different types of probes were designed to address specific needs. Please contact our sales for more information on each probe types in selecting ideal probe.
Operating Conditions	70–75°F (21–24°C), 30–70% relative humidity * Do not use under the environment that has heavy condensing, dust, vibration, and/or corrosive gas. Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below) Oil Mist Concentration: 1 mg/㎥ (ANR) or below

*1 This is based on laser measurement. *2 With T96MC-PB-0R40 probe *3 500 V / 1000 V Option *4 There may be cases where inrush current equivalent 10 times of the regular current flow when the power is initially turned ON. Please choose the breaker that will not cause any malfunction under such inrush current.

Please feel free to contact us for questions regarding the machine specs, quotes, inquiries for a brochure from the following phone number or the inquiry form. The equipment seen in the lineup are customizable to address your needs.
