- TDR/VNA Tester
Capable of evaluating characteristics of devices and substrates used in 5G applications.
High-frequency characteristics measurement system that meets the requirement of the next generation.

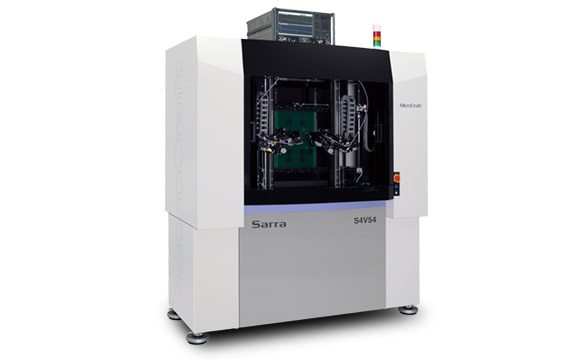

S2V/S3V/S4V54
VNA Tester
S2V54 (2 Probe)
S3V54 (3 Probe)
S4V54 (4 Probe)
Equipped with a VNA (Vector Network Analyzer), this system enables automatic measurement of high-frequency characteristics. It can perform measurements such as S-parameters and supports the evaluation of devices and PCBs used in 5G applications. It is also suitable for a wide range of uses, including transmission loss measurement of high-speed PCBs for data centers and detection of back-drilling defects. The system allows direct visual observation of probing points via a contact-check camera and can be connected to various VNA and TDR measurement meters. In a 4-probe configuration, measurements can be performed on both sides of the PCB.

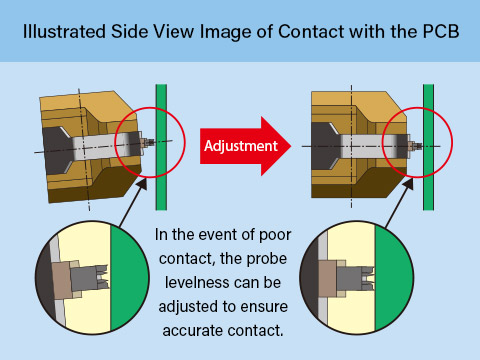

Probes contact with both endpoint of the trace to measure S-parameters.
Probe such as Form Factor's ACP series, is mounted on each arm to make contact at endpoint of the trace.
High Frequency Probe Unit
180° Rotation Mechanism
The high-frequency probe unit features a 180° rotation mechanism that allows probes to be positioned close to each other, enabling measurements across various pad layouts. It supports the installation of a wide range of high-frequency probes, including the ACP series from FormFactor Inc.
Detailed Specification
| S2V54 (2 Probe) |
S3V54 (3 Probe) |
S4V54 (4 Probe) |
|
|---|---|---|---|
| Max. Test Area | 20.9 x 18.1” (530 x 460 mm) |
20.9 x 18.1” (530 x 460 mm) |
20.9 x 18.1” (530 x 460 mm) |
| Clamp System | Pneumatic clamp |
Pneumatic clamp |
Pneumatic clamp |
| Rotate Radius | 180° |
180° |
180° |
| Repeatable Accuracy X–Y | ±0.16 mil (±4 µm) |
±0.16 mil (±4 µm) |
±0.16 mil (±4 µm) |
| Repeatable Accuracy θ | 1° |
1° |
1° |
| Air Supply: Pressure | 0.5 MPa |
0.5 MPa |
0.5 MPa |
| Air Supply: Volumetric flow rate | 0.12 ft³/min. (3.5 ℓ/min.) |
0.12 ft³/min. (3.5 ℓ/min.) |
0.12 ft³/min. (3.5 ℓ/min.) |
| Power Supply Single Phase AC200–240 V 50/60 Hz |
10 A |
12 A |
15 A |
| Weight | 3307 lbs. (1500 kg) |
3329lbs. (1510 kg) |
3351lbs. (1520 kg) |

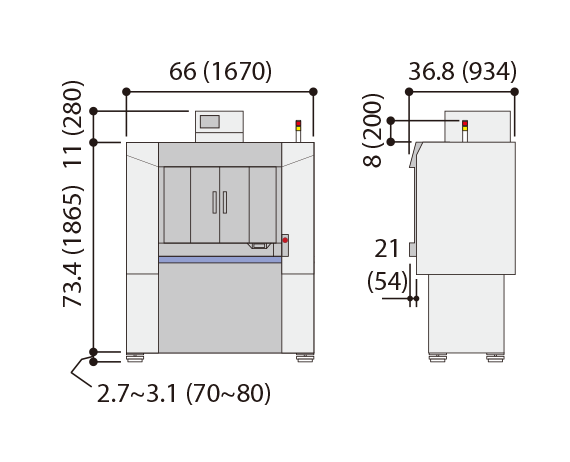

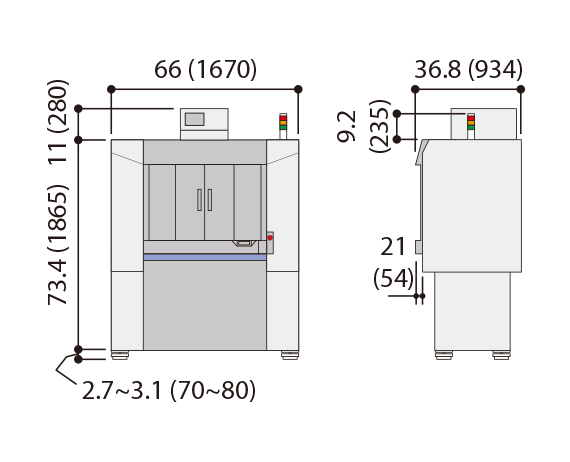

| Dimensions [ unit: inch(mm) ] |
|
|
|
| Required System | Control PC & Monitor *1 | ||
| Operating Conditions | 70–75°F (21–24°C), 30–70% relative humidity * Do not use under the environment that has heavy condensing, dust, vibration, and/or corrosive gas. Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below) Oil Mist Concentration: 1 mg/㎥ (ANR) or below |
||
Supported Meter *2
| Keysight Technologies | E5063A (500MHz/1.5GHz/3GHz/4.5GHz/6.5GHz/8.5GHz/14GHz/18GHz)
|
|---|---|
| Rohde & Schwarz | ZNA40 (40GHz)
|
| Anritsu | MS46524B (8.5GHz/20GHz/43.5GHz) |
