  • Moving Probe Tester

Revolutionizing E8 Series
Exponential High Speed Testing with 10,000 Test-Points/min.

E8 Series

E8M6151

Standard Model
E8M6151
Four probes mounted on the each side of the tester moves freely to record exponentially high test speed. Over 10,000 Test-Points/min. was accomplished by the combination of increasing probe efficiency and polished software control. While maintaining the fastest test speed, resolution of 2μm and repeatable accuracy of ±4 μm is capable.

E8M8161

Large Size Model
E8M8161 NEW
Large Size Model with the max. test area of 32 x 24” (810 x 610 mm). While maintaining the super fast test speed, lare sized boards can be tested.

Detailed Specification

E8M6151 E8M8161
Max. Test Area

24 x 20” (610 x 510 mm)

32 x 24” (810 x 610 mm)
Number of Probes

4 Front, 4 Rear

4 Front, 4 Rear
Min. Board Size

2.4 x 3” (60 x 75 mm)

3.9 x 3.9” (100 x 100 mm)
Max. Board Thickness

0.354” (9 mm)

0.354” (9 mm)
Untestable Area

3 mm from edge of clamp area *1

3 mm from edge of clamp area *1
Repeatable Accuracy *2

±0.16 mil (±4 µm)

±0.16 mil (±4 µm)
Resolution

0.08 mil (2 µm)

0.08 mil (2 µm)
Min. Pad Pitch

4.0 mil (100 µm) *3

4.8 mil (120 µm) *3
Min. Pad Size

2.0 mil (50 µm) *4

2.0 mil (50 µm) *4
Test Voltage

Continuity Test: 0–10 V
Isolation Test: 250 V *5

Continuity Test: 0–10 V
Isolation Test: 250 V *5
Test Current

Continuity Test: 2.5 µA–150 mA

Continuity Test: 2.5 µA–150 mA
Clamp System

Pneumatic Clamp

Pneumatic Clamp
CCD Camera

4 Front, 4 Rear

4 Front, 4 Rear
Printer

External

External
Air Supply: Pressure

0.5 MPa

0.5 MPa
Air Supply: Volumetric flow rate

0.12 ft³/min. (3.5 ℓ/min.)

0.12 ft³/min. (3.5 ℓ/min.)
Power Supply *6
Single Phase AC200–240 V 50/60 Hz

20 A

20 A
Weight

4409 lbs. (2000 kg)

4850 lbs. (2200 kg)

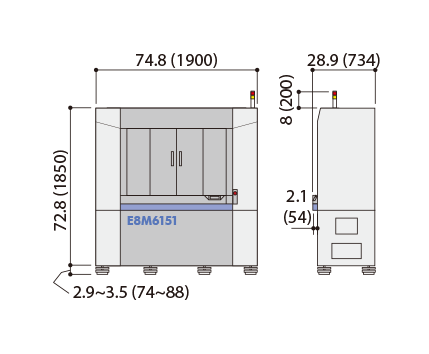

Dimensions [ unit: inch(mm) ]

Required System 1）Control PC & Monitor
2）PC & Monitor for Test Data Editing.
* 1) and 2) can be completed in one PC. * Please inquire our sales for PC specification.
Software EMMA2010 for Control PC is included, but all other software is optional (supporting OS are Windows 7 / Windows 8 / Windows 10)
Probe Type Different types of probes were designed to address specific needs. Please contact our sales for more information on each probe types in selecting ideal probe.
Operating Conditions 70–75°F (21–24°C), 30–70% relative humidity
* Do not use under the environment that has heavy condensing, dust, vibration, and/or corrosive gas.
Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below)
Oil Mist Concentration: 1 mg/㎥ (ANR) or below

*1 With needle probe. Figure will be differ with other probes. *2 This is based on laser measurement. *3 With TIPRB-PB-N110, TIPRB-PB-N111 probe *4 With TIPRB-PB-B210, TIPRB-PB-B211 probe *5 500 V / 1000 V Option *6 There may be cases where inrush current equivalent 10 times of the regular current flow when the power is initially turned ON. Please choose the breaker that will not cause any malfunction under such inrush current.
