- Moving Probe Tester
Corresponds to testing touch panel, film material, and flexible board.
Boards without Netlist can also be tested by comparing the value from Phase Difference Measurement with recorded value from the good board.
F2 Series
Super High Accuracy Model
F2H6151
High accuracy model from F2 Series. F2H6151 corresponds to testing standard sized board with up to min. pad size of 20 µm and min. pad pitch of 50 µm.
* Door design may defer depending on the specification.
Super High Accuracy Model
F2H3325
High accuracy model from F2 Series. F2H3325 is specifically designed for testing general module board and high density mother board with up to min. pad size of 15 µm and min. pad pitch of 45 µm.
* Door design may defer depending on the specification.
Super High Accuracy Model
F2S6151
Extreme High Accuracy Testing is made possible through the use of Type 9 Probe. F2S6151 corresponds to testing standard sized board with up to min. pad size of 15 μm and min. pad pitch of 45 μm.
* Door design may defer depending on the specification.
Super High Accuracy Model
F2S3325
Whereas F2S3325 is specifically designed for testing general package boards such as CSP and Flip Chip up to min. pad size of 10 μm and min. pad pitch of 40 μm.
* Door design may defer depending on the specification.

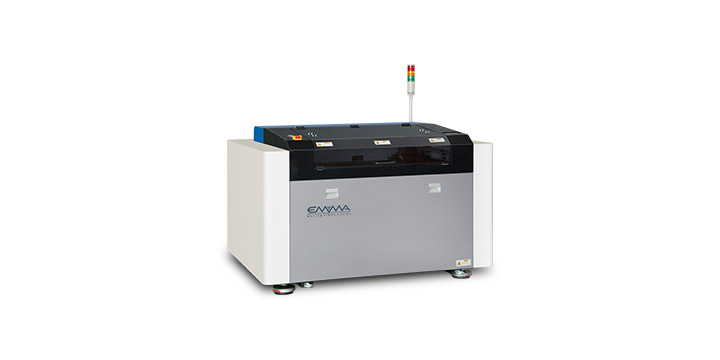

Shuttle Table Model
F2M9172SH
Larger Size Model connected to the shuttle table achieved dramatic increase in throughput production. SH stands for single shuttle (shuttle x 1).
* Door design may defer depending on the specification.
Shuttle Table Model
F2M9172SH2
SH2 stands for dual shuttle (shuttle x 2).
* Door design may defer depending on the specification.
Shuttle Table
Shuttle B sets up the next board while waiting the test on Shuttle A to complete Test (Shuttle A)
Shuttle A returns to original position after test is complete. Meanwhile Shuttle B starts the test and Shuttle A sets up the next board.
Detailed Specification (F2H)
| F2H6151 | F2H3325 | |
|---|---|---|
| Max. Test Area | 24 x 20” (610 x 510 mm) |
13 x 9.8” (330 x 250 mm) |
| Number of Probes | 2 Upper |
2 Upper |
| Min. Board Size | 2 x 2” (50 x 50 mm) |
2 x 2” (50 x 50 mm) |
| Max. Board Thickness | 0.4” (10 mm) |
0.4” (10 mm) |
| Untestable Area | — |
— |
| Repeatable Accuracy *1 | ±0.16 mil (±4 µm) |
±0.08 mil (±2 µm) |
| Resolution | 0.08 mil (2 µm) |
0.04 mil (1 µm) |
| Min. Pad Pitch | 2.0 mil (50 µm) *2 |
1.8 mil (45 µm) *2 |
| Min. Pad Size | 0.8 mil (20 µm) *3 |
0.6 mil (15 µm) *3 |
| Test Voltage | Continuity Test: 0–10 V |
Continuity Test: 0–10 V |
| Test Current | Continuity Test: 2.5 µA–150 mA |
Continuity Test: 2.5 µA–150 mA |
| Clamp System | Vacuum Plate |
Vacuum Plate |
| CCD Camera | 2 Upper |
2 Upper |
| Printer | External |
External |
| Air Supply: Pressure | 0.5 MPa |
N/A |
| Air Supply: Volumetric flow rate | 0.02 ft³/min. (0.6 ℓ/min.) |
N/A |
| Power Supply *5 Single Phase AC200–240 V 50/60 Hz |
8 A |
8 A |
| Weight | 1587 lbs. (720 kg) |
1543 lbs. (700 kg) |
| Dimensions [ unit: inch(mm) ] |
|
|
| Required System | 1）Control PC & Monitor 2）PC & Monitor for Test Data Editing. * 1) and 2) can be completed in one PC. * Please inquire our sales for PC specification. |
|
| Software | EMMA2010 for Control PC is included, but all other software is optional (supporting OS are Windows 7 / Windows 8 / Windows 10) | |
| Probe Type | Different types of probes were designed to address specific needs. Please contact our sales for more information on each probe types in selecting ideal probe. | |
| Operating Conditions | 70–75°F (21–24°C), 30–70% relative humidity * Do not use under the environment that has heavy condensing, dust, vibration, and/or corrosive gas. Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below) Oil Mist Concentration: 1 mg/㎥ (ANR) or below |
|
Detailed Specification (F2S)
| F2S6151 | F2S3325 | |
|---|---|---|
| Max. Test Area | 24 x 20” (610 x 510 mm) |
13 x 9.8” (330 x 250 mm) |
| Number of Probes | 2 Upper |
2 Upper |
| Min. Board Size | 2 x 2” (50 x 50 mm) |
2 x 2” (50 x 50 mm) |
| Max. Board Thickness | 0.16” (4 mm) |
0.16” (4 mm) |
| Untestable Area | — |
— |
| Repeatable Accuracy *1 | ±0.08 mil (±2 µm) |
±0.04 mil (±1 µm) |
| Resolution | 0.04 mil (1 µm) |
0.04 mil (1 µm) |
| Min. Pad Pitch | 1.8 mil (45 µm) *2 |
1.6 mil (40 µm) *2 |
| Min. Pad Size | 0.6 mil (15 µm) *3 |
0.4 mil (10 µm) *3 |
| Test Voltage | Continuity Test: 0–10 V |
Continuity Test: 0–10 V |
| Test Current | Continuity Test: 2.5 µA–150 mA |
Continuity Test: 2.5 µA–150 mA |
| Clamp System | Vacuum Plate |
Vacuum Plate |
| CCD Camera | 2 Upper |
2 Upper |
| Printer | External |
External |
| Air Supply: Pressure | 0.5 MPa |
N/A |
| Air Supply: Volumetric flow rate | 0.02 ft³/min. (0.6 ℓ/min.) |
N/A |
| Power Supply *5 Single Phase AC200–240 V 50/60 Hz |
8 A |
8 A |
| Weight | 1587 lbs. (720 kg) |
1543 lbs. (700 kg) |
| Dimensions [ unit: inch(mm) ] |
|
|
| Required System | 1）Control PC & Monitor 2）PC & Monitor for Test Data Editing. * 1) and 2) can be completed in one PC. * Please inquire our sales for PC specification. |
|
| Software | EMMA2010 for Control PC is included, but all other software is optional (supporting OS are Windows 7 / Windows 8 / Windows 10) | |
| Probe Type | Different types of probes were designed to address specific needs. Please contact our sales for more information on each probe types in selecting ideal probe. | |
| Operating Conditions | 70–75°F (21–24°C), 30–70% relative humidity * Do not use under the environment that has heavy condensing, dust, vibration, and/or corrosive gas. Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below) Oil Mist Concentration: 1 mg/㎥ (ANR) or below |
|
Detailed Specification (Shuttle Table Model)
| F2M9172SH | F2M9172SH2 | ||
|---|---|---|---|
| Max. Test Area | 35.8 x 28.3” (910 x 720 mm) |
35.8 x 28.3” (910 x 720 mm) |
|
| Number of Probes | 2 Upper |
2 Upper |
|
| Min. Board Size | 2 x 2” (50 x 50 mm) |
2 x 2” (50 x 50 mm) |
|
| Max. Board Thickness | 0.4” (10 mm) |
0.4” (10 mm) |
|
| Untestable Area | — |
— |
|
| Repeatable Accuracy *1 | ±0.16 mil (±4 µm) |
±0.16 mil (±4 µm) |
|
| Resolution | 0.08 mil (2 µm) |
0.08 mil (2 µm) |
|
| Min. Pad Pitch | 7.0 mil (180 µm) *2 |
7.0 mil (180 µm) *2 |
|
| Min. Pad Size | 2.4 mil (60 µm) *2 |
2.4 mil (60 µm) *2 |
|
| Test Voltage | Continuity Test: 0–10 V |
Continuity Test: 0–10 V |
|
| Test Current | Continuity Test: 2.5 µA–150 mA |
Continuity Test: 2.5 µA–150 mA |
|
| Clamp System | Vacuum Plate |
Vacuum Plate |
|
| CCD Camera | 2 Upper |
2 Upper |
|
| Printer | External |
External |
|
| Air Supply: Pressure | 0.5 MPa |
0.5 MPa |
|
| Air Supply: Volumetric flow rate | 0.02 ft³/min. (0.6 ℓ/min.) |
0.02 ft³/min. (0.6 ℓ/min.) |
|
| Power Supply *4 Single Phase AC200–240 V 50/60 Hz |
15 A |
15 A |
|
| Weight | 3307 lbs. (1500 kg) |
4409 lbs. (2000 kg) |
|
| Dimensions [ unit: inch(mm) ] |
|
|
|
| Required System | 1）Control PC & Monitor 2）PC & Monitor for Test Data Editing. * 1) and 2) can be completed in one PC. * Please inquire our sales for PC specification. |
||
| Software | EMMA2010 for Control PC is included, but all other software is optional (supporting OS are Windows 7 / Windows 8 / Windows 10) | ||
| Probe Type | Different types of probes were designed to address specific needs. Please contact our sales for more information on each probe types in selecting ideal probe. | ||
| Operating Conditions | 70–75°F (21–24°C), 30–70% relative humidity * Do not use under the environment that has heavy condensing, dust, vibration, and/or corrosive gas. Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below) Oil Mist Concentration: 1 mg/㎥ (ANR) or below |
||
