  • On-demand InkJet Printing System

Equipped with 2 high-definition Epson print heads.

C2E model

C2E

High-Definition Printing Model

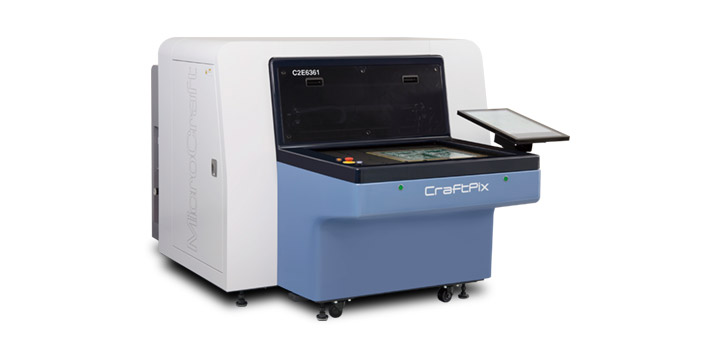

C2E6361 NEW
Capable of dropping near-perfect circular ink droplets onto media with high accuracy by the precise nozzles and ink flow paths of Epson’s unique MEMS technology. Ink circulatory system comes as standard equipment.

Detailed Specification

C2E6361
Max. Panel Size

25 x 24” (635 x 610 mm)
Max. Discharge Frequency

48 kHz
X-axis Resolution (dpi)

600 / 1200 / 1800
Y-axis Resolution (dpi)

300 / 600 / 900 / 1200
Min. Droplet Size

3.2 pl
Number of Nozzles

2 x 3200 (6400) *1
Standard Resolution

600 dpi
Min. Line Width *2

40 µm–70 µm
Speed *3

22.8 x 17” (580 x 430 mm): 15 seconds

24 x 20” (610 x 510 mm): 16 seconds
Number of Ink Tank

1
Ink Tank Volume (Max.)

100 ml
On-Head UV Lamp *4

LED-UV lamp
Number of Alignment Cameras

1
Camera Resolution

0.19 x 0.14” (4.9 x 3.7 mm)
Air Supply: Pressure

0.5 MPa
Air Supply: Volumetric flow rate

5.4 ft³/min. (150 ℓ/min.)
Power Supply *5
Single Phase AC200–240 V 50/60 Hz

30 A
Weight

2645.5 lbs. (1200 kg)
Dimensions [ unit: inch(mm) ]

Operating Conditions 70–75°F (21–24°C), 30–70% relative humidity
* Free of moisture, dust (ISO class 7 (FED-STD-209D Class10,000) clean room or better), vibration, and corrosive gas.
Atmospheric Dew Point: −14°C or below (at 0.7 Mpa, dew point is 15°C or below)
Oil Mist Concentration: 1 mg/㎥ (ANR) or below

*1 Number of nozzles used for printing; C2E: 5560 *2 Depends on ink *3 While using UV pinning type ink, speed spec may change according to required UV energy. Print times do not include image alignment, shuttle and load and unload time. Please confirm the printing quality and speed by allowing us to run a benchmark test at MicroCraft. *4 LED UV lamp to be mounted depends on the ink to be used. *5 Separate power source for cooling device and vacuum pump is necessary (specifications may be different in some countries). § Replacement of ink requires special training § CraftPix consumables are ink, cleaning fluid, filter, sending fluid tube, UV lamp, array unit, vacuum paper, temperature sensor, heater, etc. § Please contact MicroCraft for detailed specification.

Common Specification

Board Thickness

0.004 to 0.24” (0.1–6.0 mm) *6
*compatibility for thickness exceeds 0.24” (6.0 mm) is optional
Monitor

Touch Screen LCD Monitor
Software

Windows 10 / Windows 11
Data Input Format

RS274X, RS274D, ODB++, DPF, DXF, BMP *7, TIFF *7

*6 When the vacuum table is used. Figures depend on the board warpage and clamp type. Printing quality may decrease with warpage. Please contact MicroCraft for more precise figures for specific conditions. *7 Scaling and alignment functions are not usable.

Vacuum Pump *

Power Supply

Three Phase AC200 V 10 A 50/60 Hz, AC220 V 10 A 60 Hz
Capacity

50 Hz: 20.7 ft³/min. (575 ℓ/min.)
60 Hz: 24.7 ft³/min. (685 ℓ/min.)
Air Coupler Size

RC 3/4
Weight

187.4lbs. (85 kg)

* Depends on clamping method
